Cutting


Our in-house metal cutting can be accomplished with our computer controlled laser or water jet for cutting sheet and plate material into the desired flat components for any conveyor or devices being fabricated. Structural cutting is accomplished by use of cold saws, band saws or an iron worker.
Our cutting services include:

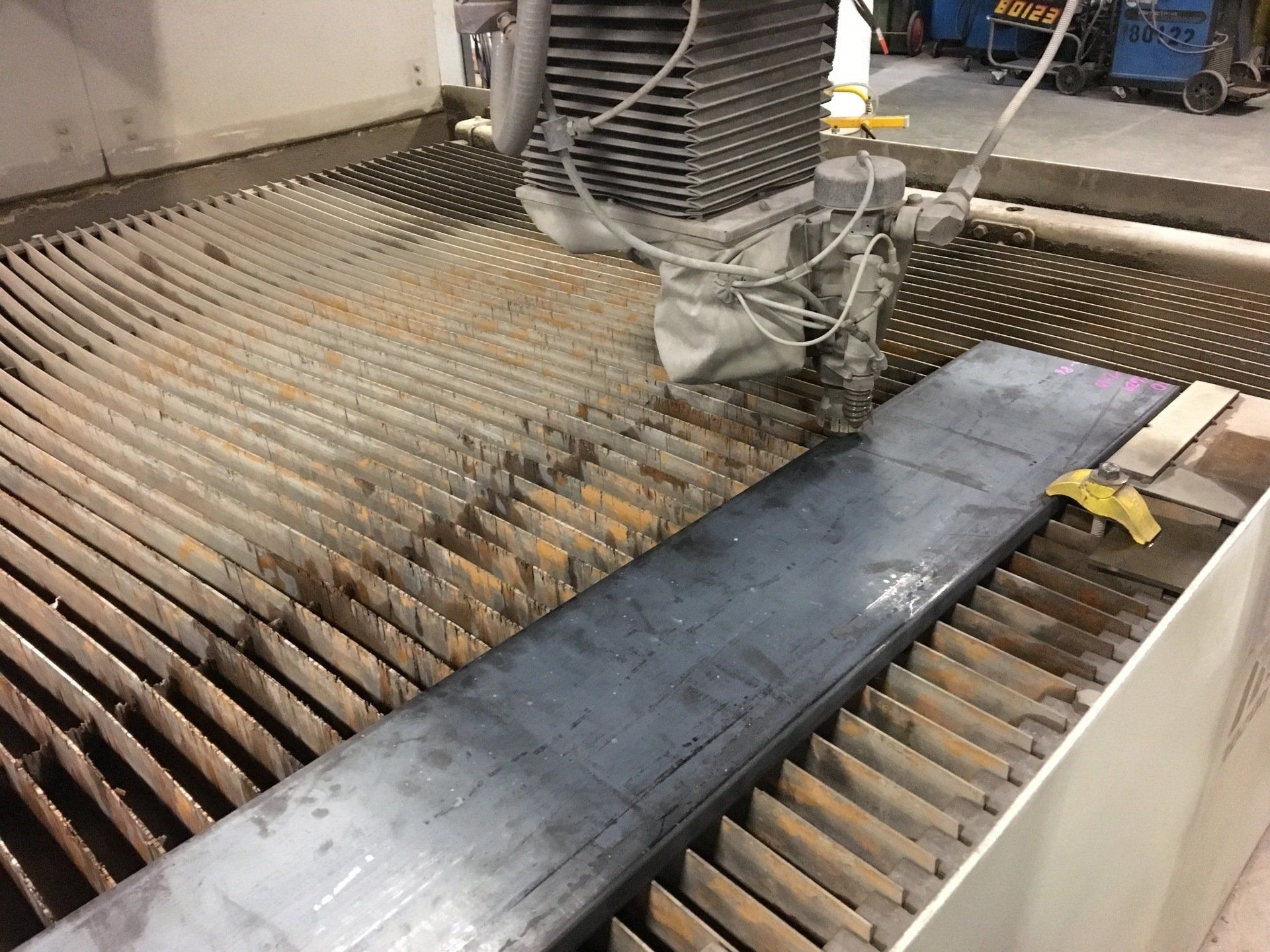

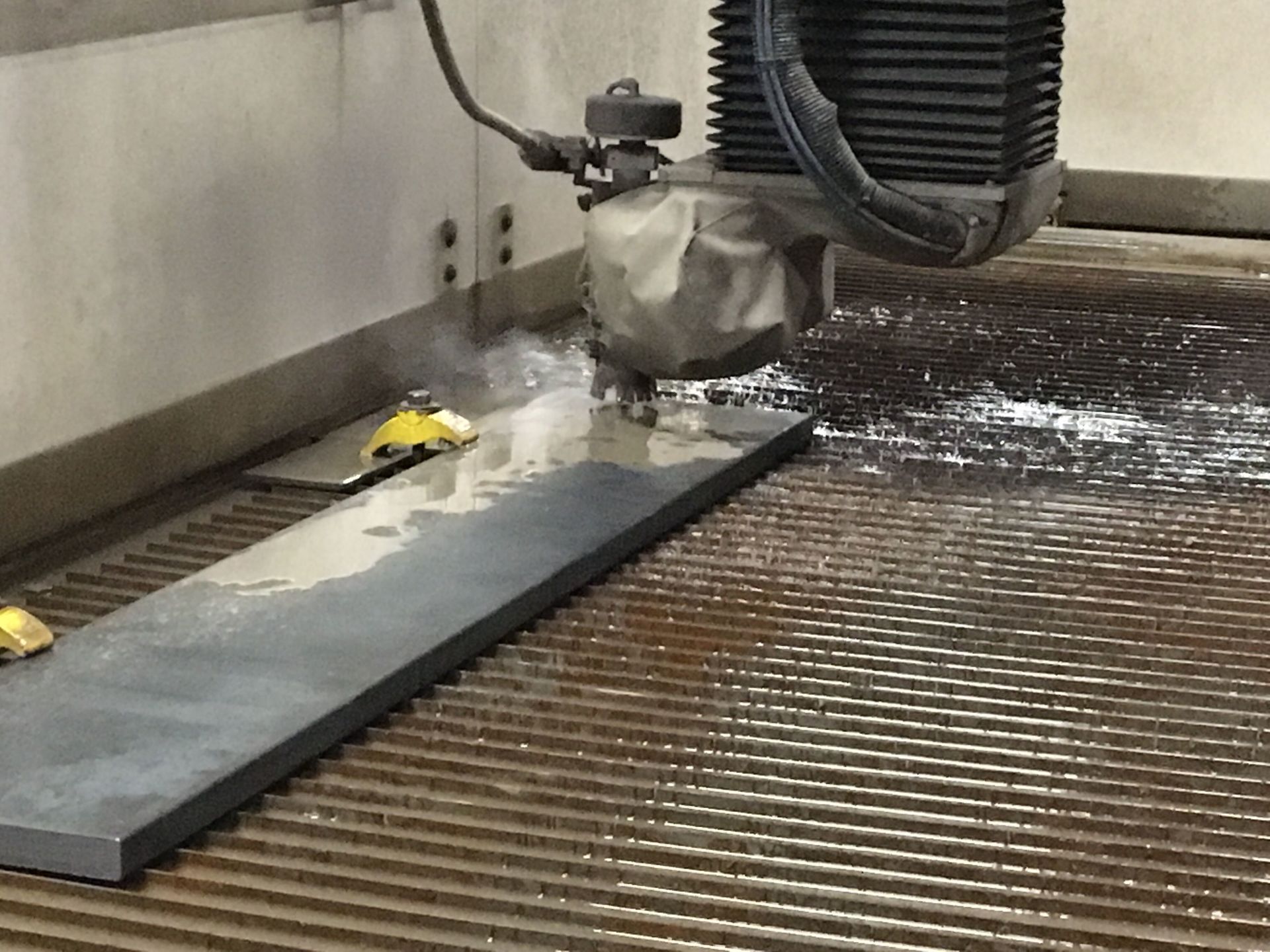

Computer Control Water Jet Cutting
    • Cuts up to 6 inch thick mild steel
    • Cuts up to 3 inch D2 tool steel
    • Cuts up to 1 inch stainless steel
    • Cuts up to 2 inch 6061 aluminum
    • Cuts almost any material
    • Maximum size is 6 ft. x 10 ft.

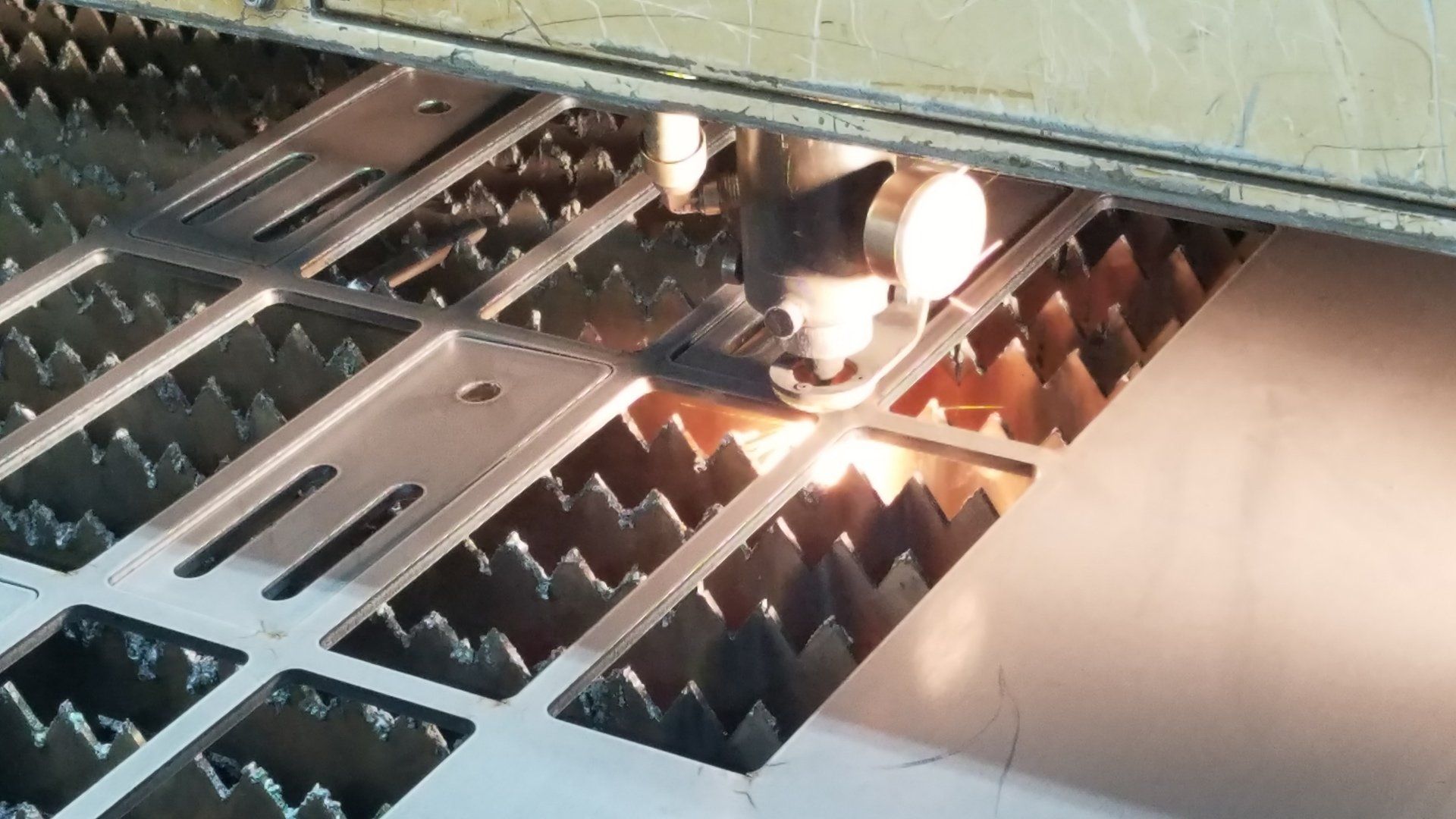

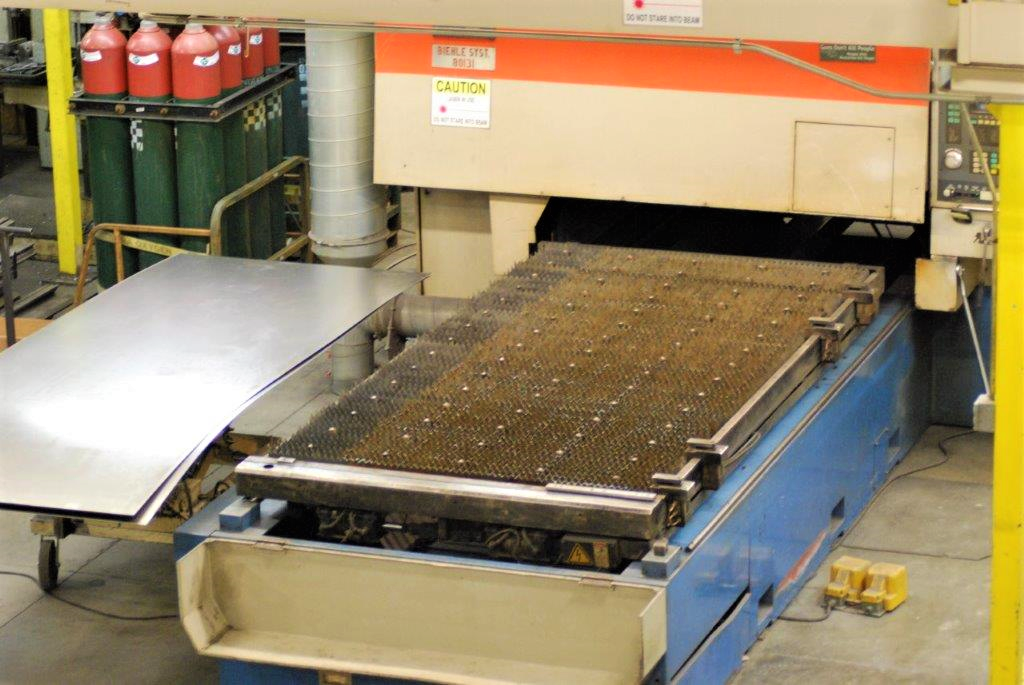

Computer Control Laser Cutting
    • Cuts up to 1/2 inch mild steel
    • Cuts up to 1/4 inch stainless steel
    • Max sheet size is 5 ft. x 10 ft.
Shear
    • Shear up to 1/4 inch mild steel
    • Shear up to 3/16 inch stainless steel
